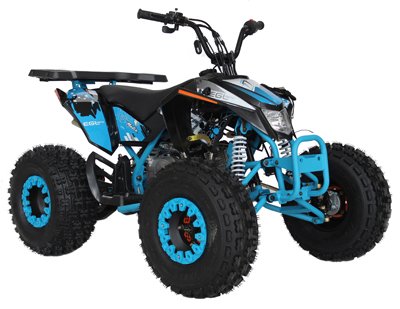

MADIX 125

Madix 125

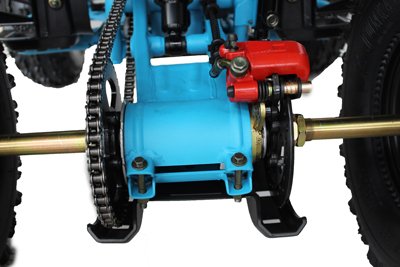

Eccentric Rear System

Engine Type: 125CC, 4 Stroke, Single Cylinder

Transmission: Automatic With Reverse

Cooling System: Air-cooled ,

Ignition: CDI,

Starting System: Electric Start, Battery: 12V, 5Ah

Final Drive: Chain Drive, Fuel Capacity: 4L

Engine Compression: 9.3:1

Front/Rear Brakes: Drum Brake (Hand)/ Hydraulic Disc (Foot)

Max Speed: 30-40MPH, Engine Oil: 0.9L

Front/Rear Tire: 19x7.0-8, 18x9.5-8

Suspension Front: Double Swing Arm

Suspension Rear: Single Swing Arm

Shock Absorber(F/R): Double/Single

Seat Height: 720mm, Ground Clearance: 110mm

Max Horsepower: 5.6KW/8000R/Rpm

Max Torque: 8.6N.M/5000R/Min, Bore Stroke: 52.4/49.5MM

Max load: 165LBS, Weight: G.W. / 265 LBS/ N.W 232 LBS

Carton Dimensions: L*W*H: 48” x 30”x 26”

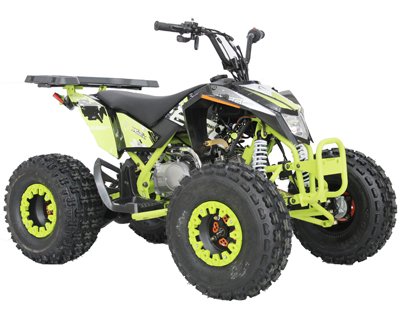

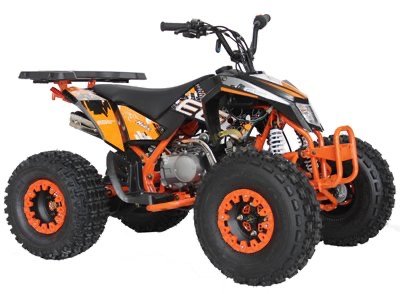

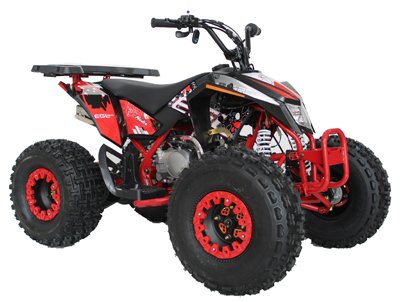

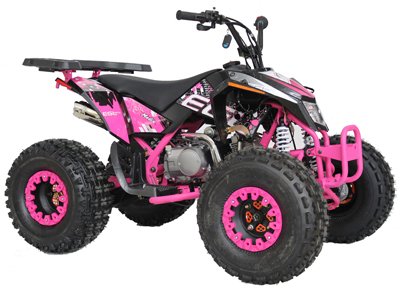

Colors: Red, Blue, Green, Orange, Pink
