HAWK 110

Engine Type: 107CC, 4 Stroke, Single Cylinder

Transmission: Automatic/0.378(14/37)

Final Drive: Chain Drive

Carburetor: PZ19

Ignition: AC-CDI

Cooling System: Air-cooled

Starting System: Electric Start

Battery: 12V, 4Ah

Suspension / Front : Spring Shock

Suspension / Rear : Spring Shock

Front Brakes: Drum Brake (Hand)

Rear Brake: Hydraulic Disc (Foot)

Max Speed: 30-35MPH

Fuel Capacity: 2.2L

Front/Rear Tire: 145/70-6,20F

Front Wheel tracy: 590mm

Rear Wheel tracy: 550mm

Compression Ratio: 9.0:1

Front Suspension: Double A-Arm

Rear Suspension: Single Swing Arm

Max Horsepower: 4.8KW/8000R/Min

Max torque: 6.9/6500 (N.m/r/min)

Bore Stroke: 52.4 x 49.5mm Climbing ability

Weight: G.W./N.W 201 LBS/161 LBS

Seat Height: 640mm

Max load: 140LBS

Dimensions Wheelbase: 830mm

L x W x H: 1250mm×725mm×820mm

Carton Dimensions: L*W*H: 46” x 28”x 25”

Height To Seat: 600mm

Ground Clearance: 85mm

Payload of Rack: 22LBS

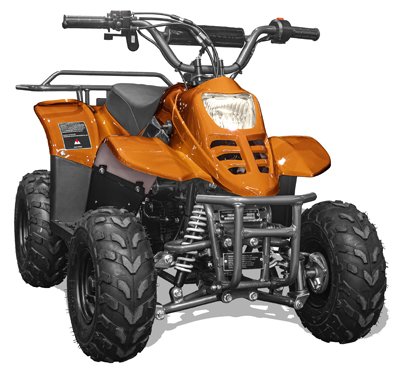

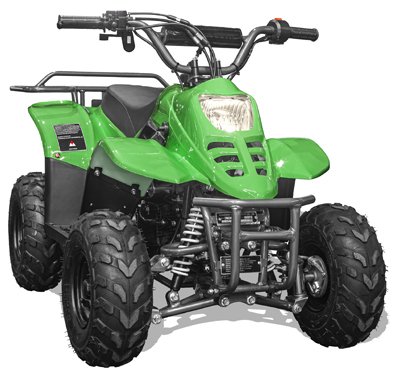

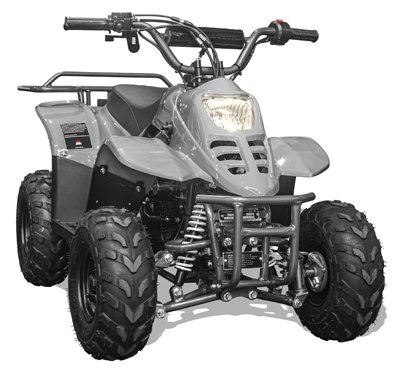

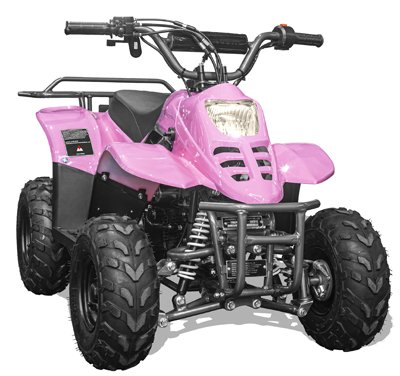

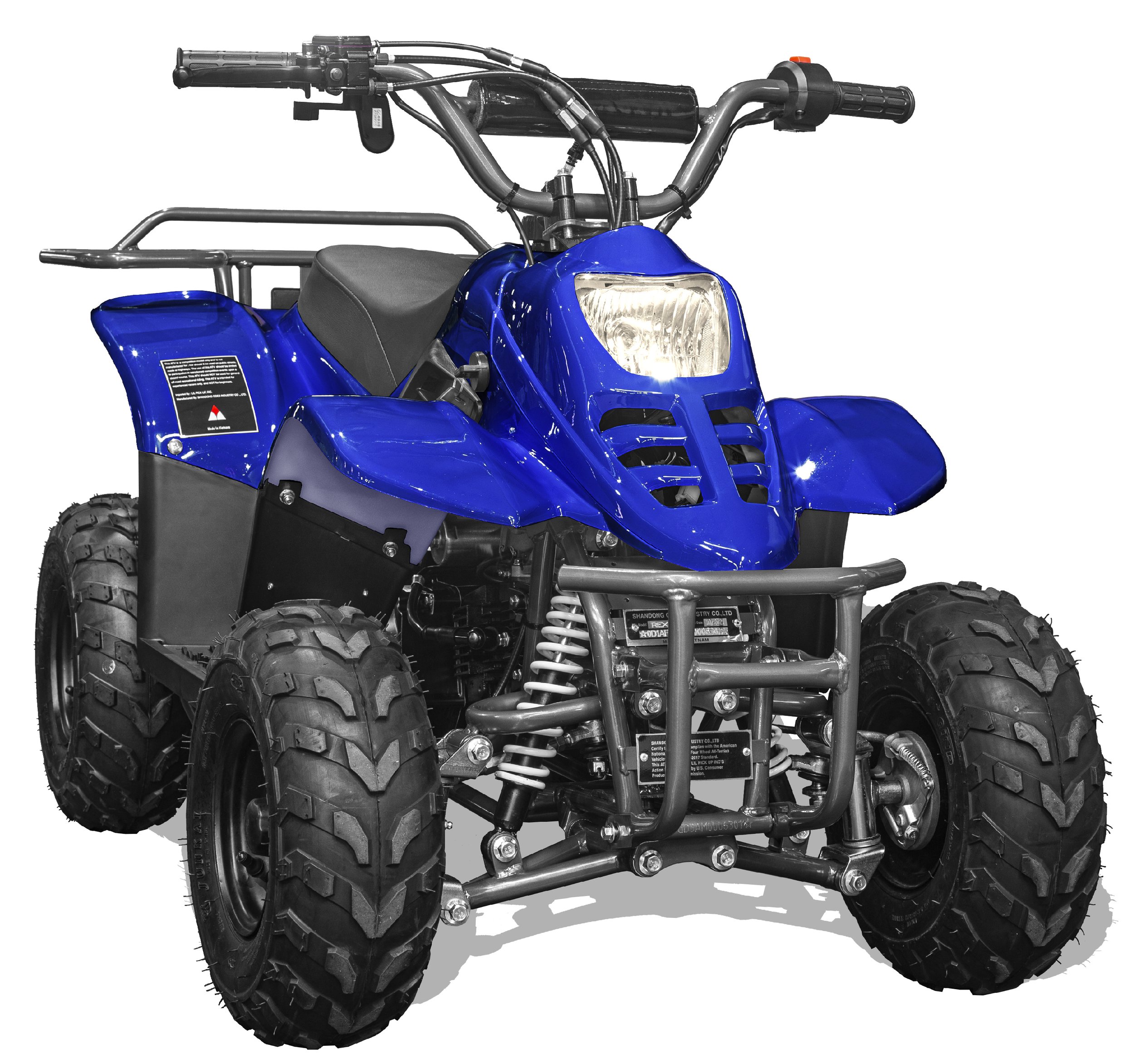

Colors: Metallic Red, Blue,Black, Pink, Grey,Green,Orange
